How to find out & reset WinHTTP Proxy Server Settings in Windows 10

THis post will show you how to find the Proxy Server Settings of your Windows computer using PowerShell, CMD, Registry, etc. Also, if you are facing problems downloading Windows Updates,  or other network connection issues, you may want to reset WinHTTP Proxy Settings and see if that helps you.

What is WinHTTP proxy

Says Microsoft, Windows HTTP Services (WinHTTP) is a technology for accessing HTTP that provides developers with a server-supported, high-level interface to the HTTP/1.1 Internet protocol. WinHTTP is designed to be used primarily in server-based scenarios by server applications that communicate with HTTP servers. WinHTTP is also designed for use in system services and HTTP-based client applications.

Check Proxy Server Settings

I do not use a Proxy, so some entries may not be visible in my screenshots.

1] Command line

Reset WinHTTP Proxy Settings

You have to make use of the built-in netsh.exe tool in your Windows operating system.

To view your computer’s proxy information, open an elevated command prompt, type the following command, and then press Enter:

netsh.exe winhttp show proxy

There are other ways to find your PCs proxy settings.

2] Google Chrome

In Chrome browser, type the following in the address bar and hit Enter:

chrome://net-internals/#proxy

You will see the proxy settings here.

3] Mozilla Firefox

In Firefox browser, type the following in the address bar and hit Enter:

about:preferences#advanced

Scroll down and click the Network Proxy Settings button to see them.

4] Registry Editor

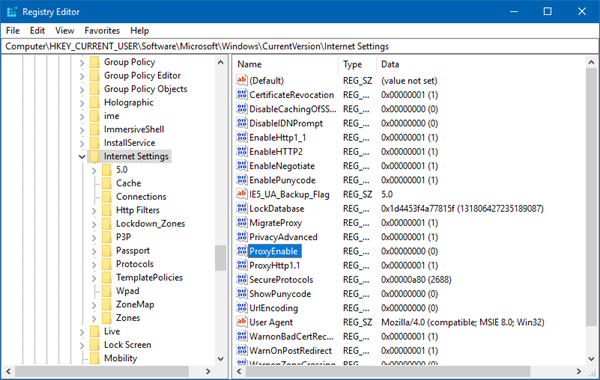

Open REGEDIT and navigate to the following key:

HKEY_CURRENT_USER\Software\Microsoft\Windows\CurrentVersion\ Internet Settings

The ProxyEnable key controls the proxy settings. 0 disables them, and 1 enables them. If you are using a proxy, you will get its value under the ProxyServer key.

5] PowerShell

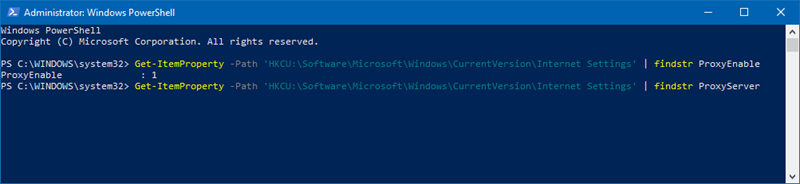

Run PowerShell as Administrator and execute the following command:

Get-ItemProperty -Path 'HKCU:\Software\Microsoft\Windows\CurrentVersion\Internet Settings' | findstr ProxyServer

6] Internet Options

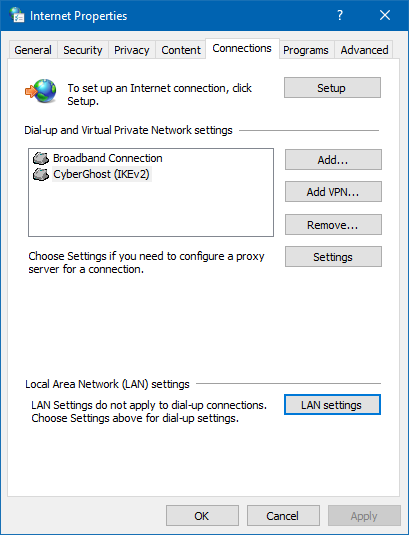

Open Internet Options > Connections tab > Click the Lan settings button. You will see the Proxy server settings there.

7] Windows Settings

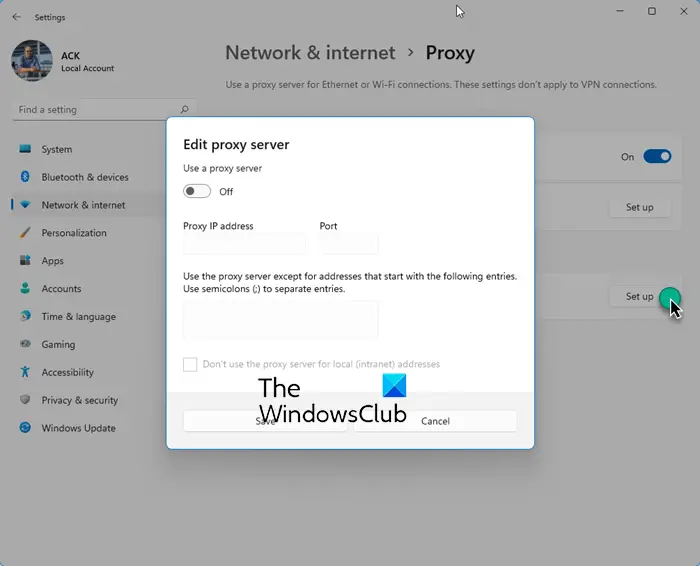

Open Windows Settings > Network & Internet > Proxy. You will see the Proxy server settings here.

Reset WinHTTP Proxy Settings

If your system uses a proxy server and you wish to remove it, open an elevated command prompt, type the following command, and then press Enter:

netsh winhttp reset proxy

This will remove a proxy server and configure “direct access” to the Internet.
