When you go on to backup your Windows 10 computer, if your backup fails with error 0x8031004A, BitLocker Drive Encryption cannot be used because critical BitLocker system files are missing or corrupted, Use Windows Startup Repair to restore these files to your computer then perhaps something in this post will help you.
We have seen how we can create a System Image via the Control Panel or using the PowerShell. At times, however, an error can be thrown up. It could be Backup storage location has shadow copy storage on another volume, or it could be this Critical BitLocker system files are missing or corrupted error message. Let us see how to resolve the latter error today.
Fix BitLocker Drive Encryption cannot be used, Error 0x8031004A

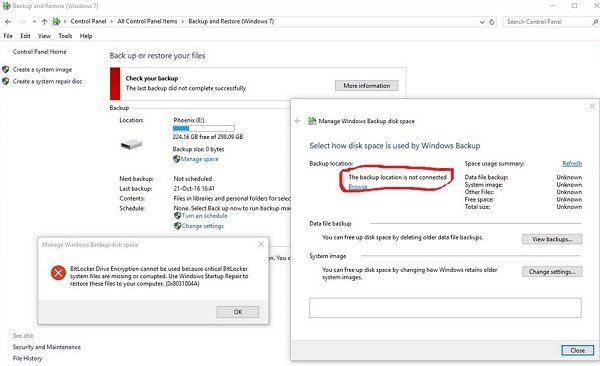

(Image source: Microsoft Answers)
BitLocker Drive Encryption cannot be used because critical BitLocker system files are missing or corrupted (0x8031004A)
If you face this issue when using BitLocker, try rebooting the system and check if it works. Most probably, it won’t.
- Run System File Checker
- Run DISM
- Run ChkDsk
- Check the status of the Volume Shadow Copy Service
- Delete the old Windows Image Backup images
- Use Automatic Startup Repair
- Temporarily disable Windows RE
Proceed to the following troubleshooting steps using administrator account.
1] Run System File Checker
Open an elevated Command Prompt window, type the following command and hit Enter:
sfc /scannow
If any file corruption is found, they will be replaced with good files.
2] Run DISM
Open an elevated Command Prompt window, type the following command and hit Enter:
DISM.exe /Online /Cleanup-image /Restorehealth
This will repair a possibly corrupted Windows system image.
3] Run ChkDsk
Open an elevated Command Prompt window, type the following command and hit Enter:
chkdsk /r
It points out bad sectors and recovers any information that is readable.
4] Check the status of the Volume Shadow Copy Service
Type services.msc in Start Search to open the Windows Services Manager. Right-click on it and click Properties. Check the status of the service. It should be set at Manual. Start it right now and ensure that it is running, and then try again.
5] Delete the old Windows Image Backup images
If you can afford to, you may delete previous System Images and Backups and then try again.
6] Use Automatic Startup Repair
If nothing works for you, then as suggested in the error message itself, you may use Automatic Repair to restore the corrupted or missing system files to your computer.
Boot into Advanced Startup Options and select Automatic Repair.
7] Temporarily disable Windows RE
There is one more suggestion you can try that has been suggested by Microsoft:
In an elevated command prompt, type the following command, and then press Enter:
C:\Windows\System32\REAgentC.exe /disable
Disconnect the external hard drive.
At the elevated command prompt, type the following command, and then press Enter:
C:\Windows\System32\REAgentC.exe /enable
Reconnect the external hard disk to the computer and see.
If all these steps fail, and the error is causing a serious interruption to your work, you might consider refreshing the Windows 10 system.
Read this post if you receive This device can’t use a Trusted Platform Module error while starting BitLocker message.
How do I unlock BitLocker encryption?
The only way to unlock a driver which is encrypted using Bitlocker is the BitLocker recovery key or the password. These are made available when you encrypt it for the first time and should be safely stored. Windows will prompt for it when you connect the driver to another PC or want to unlock or remove the encryption.
Does BitLocker encrypt the entire drive?
Yes, Bitlocker ensures that the complete driver is encrypted, and nobody can access the data unless the password or recovery key is used. However, when encrypting it for the first time, you can choose to encrypt only the section with the data. When this method is used, the drive will encrypt as it gets new data from the user. The only advantage is that the initial setup is quicker than usual.
