How to use Windows 10 Task Manager like an IT Pro

One of the best features of Windows 10/8 which I like is the Task Manager. The humble Task Manager has evolved over the years and now the new Windows 10/8 Task Manager, offers a lot of information – more like the Process Explorer by Mark Russinovich. In this article, I’ll briefly explain some features of Windows 10 Task Manager and how to use it like a Pro!

Windows 10/8 Task Manager

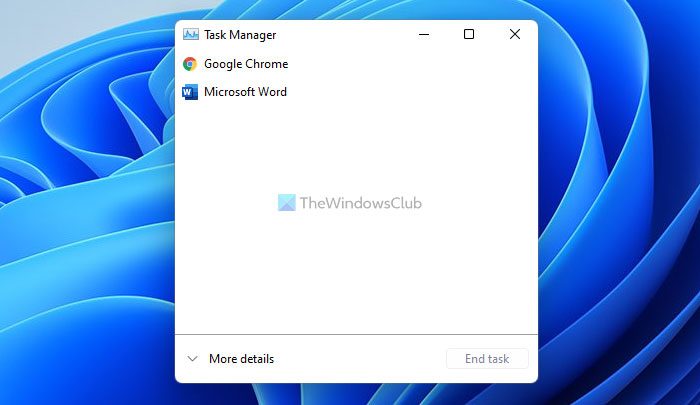

When you open the Task Manager, it just gives a very basic list of programs that are running and give you the option to “End Task” it. This is to avoid presenting too much information to a novice who may not have any real need for it.

clip_image001

To access the detailed information click on “More Details” to see the advanced version of Task Manager.

Processes Tab:

Windows 8 Task Manager

Can you see the difference? The figures appear in different color shades. This is the Heat Map which has already been covered here on TWC. Moreover, the list is broken down into three categories

  • Applications
  • Background processes
  • Window processes

1. Applications.

Now let’s talk about what we can do with the Applications section. One of the main advantages of this new Task Manager is that you can now see the child processes running under the parent. The advantage? Let’s say, only one of the pages in Internet Explorer freezes. You don’t have to close the entire Process. You can just kill the tab that’s frozen.

clip_image004

The next thing I have noticed is you can restart a service, which is really handy. For instance, if your Windows explorer.exe freezes, you don’t have to kill the service and start the service again, just Right click on the service and click on “Restart”.

clip_image006

2. Background Processes & Windows Processes.

Background processes are just processes that run in the background and usually belong to third-party applications.

clip_image007

You can get a lot of information about a process that’s running in the background using the new Task Manager. For instance, you can “Search the Web” for the service when you’re not sure what the service is. You can click on go to Detail, etc. to get more details on it.

Windows Processes is the same as the Services you see under Administrative tools but a nice little version. The reason it is arranged in this way where you can see the dependent service running under the parent service is because, if your particular service is not starting, you can check if the dependent services are running or not.

clip_image008

In the Application tab, you can see the CPU usage, Memory usage, and Disk usage. So if your system is freezing, you can see which application is also causing which portion of it is causing if it’s the Memory or Disk.

Performance Tab:

On performance tab, you’ll see the performance graph of different CPU usages.

clip_image010

You can select one which one you want and see the graphics also: Process, Threads, Handles, etc., which comes handy when you are troubleshooting Memory leaks. Handle leaks, etc.

App History Tab:

App History Tab shows you the total resource usage of the Metro apps. It doesn’t show the information of the application that’s open in a desktop. For instance “Firefox” was open for a long time on mine – it doesn’t show that information. I wish we had an option to show that as well, but this tab shows details about Metro apps only. Go here to see how to delete the apps usage history.

clip_image011

Startup Tab:

Startup tab is one of the cool features of Windows 8 Task Manager. You don’t have to go to MSCONFIG to tweak your startup items you can do it right in the Task Manager.

clip_image012

Items you want to disable, you can right-click and disable them right away. It would also show the Startup Impact as well which is a very nice feature.

Users Tab:

The next tab is “Users” which most of them are familiar with, so I am not touching on it.

Details Tab:

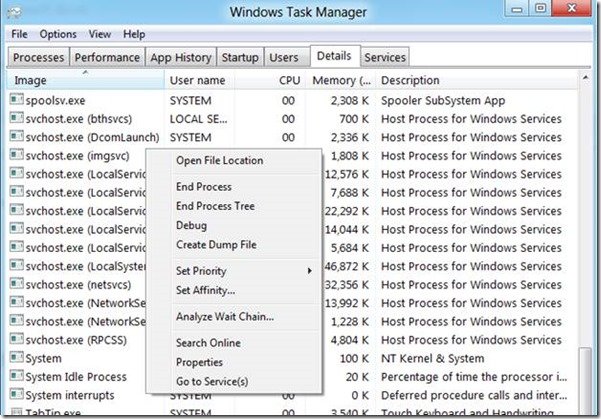

The next Tab is Details which is the new feature. Like the title says it has the detailed information about the process that’s running on your computer.

clip_image014

When you right-click, you’ll get the options which most of them are same, but a new one I noticed is “Analyze Wait Chain…

Wait Chain Traversal (WCT) enables debuggers to diagnose application hangs and deadlocks. A wait chain is an alternating sequence of threads and synchronization objects; each thread waits for the object that follows it, which is owned by the subsequent thread in the chain.

Services Tab:

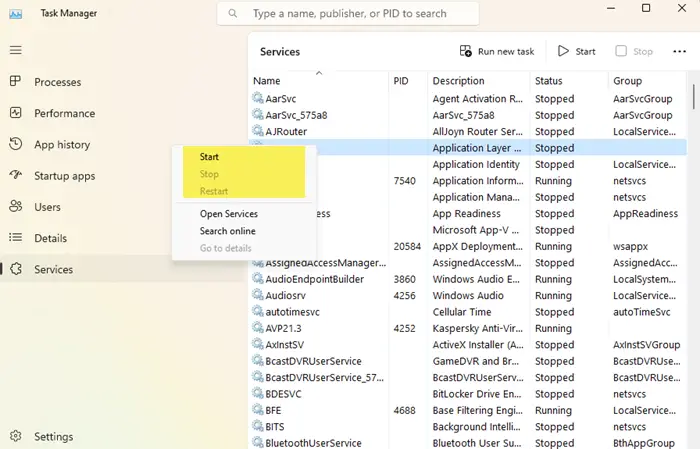

The last tab is Services which are running on your computer. Most of us are familiar with this one too as it existed in Windows 7 too.

So now that you know most of the features available in the new Task Manager in Windows 10/8, you can now use it to its fullest potential – like any IT Pro would do. If I have missed something, do share in the comments below.

Now read: Use the Task Manager like a desktop widget with its Summary View!
