How to manually reset each Windows Update component to default

At times, users experience trouble using Windows Update. While there are several ways to troubleshoot various Windows Update issues, if this happens frequently, it would be a good idea to reset Windows Update settings to default. This can be useful if your Windows Updates fail to Install . We have already seen how to reset Windows Update to default using the Reset Windows Update Components Tool. Our Fix WU Utility re-registers all Windows Update related dll files and resets other settings to default. But if you want to know how to manually reset each Windows Update component individually to default in Windows 10/8/7, then this post is what you are looking for.

windows-10-update

Manually reset Windows Update Components

1] First you will need to stop the Background Intelligent Transfer, Windows Update, Cryptographic Services. The services basically allow Windows to download all files and update that are used by Automatic Windows Update and other Windows components. It uses the idle bandwidth of network connection when your connection is idle and silently downloads files in the background. It is, therefore, the best practice to disable the BITS service before proceeding.

To do so, in an elevated command prompt window, type the following commands and press Enter after you type each command.

net stop bits
net stop wuauserv
net stop appidsvc
net stop cryptsvc

2] Next you need to delete the qmgr*.dat files. In order to reset Windows Update components, you will need to delete the files. To do this, at a command prompt, type the following command, and then press Enter:

Del "%ALLUSERSPROFILE%\Application Data\Microsoft\Network\Downloader\qmgr*.dat"

It’s worth mentioning here that if this is the first time you are trying to resolve your Windows Update issues by following the steps in this post, it is advisable to skip this very step and jump directly to the next step. The step should only be followed for troubleshooting when you see no solution in sight despite trying all steps outlined in the article except this step since the step is performed by the “Aggressive” mode of the Fix it Solution.

3] Rename the SoftwareDistribution and catroot2 folders. To do this, at a command prompt, type the following commands. Make sure that you press Enter after you type each command.

Ren %systemroot%\SoftwareDistribution SoftwareDistribution.bak
Ren %systemroot%\system32\catroot2 catroot2.bak

3] Reset the BITS service and the Windows Update service to the default security descriptor. To do this, at a command prompt, type the following commands. Make sure that you press Enter after you type each command.

exe sdset bits D:(A;;CCLCSWRPWPDTLOCRRC;;;SY)(A;;CCDCLCSWRPWPDTLOCRSDRCWDWO;;;BA)(A;;CCLCSWLOCRRC;;;AU)(A;;CCLCSWRPWPDTLOCRRC;;;PU)
exe sdset wuauserv D:(A;;CCLCSWRPWPDTLOCRRC;;;SY)(A;;CCDCLCSWRPWPDTLOCRSDRCWDWO;;;BA)(A;;CCLCSWLOCRRC;;;AU)(A;;CCLCSWRPWPDTLOCRRC;;;PU)

Now, in the command prompt window that is opened, type the following command, and then press Enter:

cd /d %windir%\system32

Re-register the BITS files and the Windows Update related dll files. To do so, in the command prompt window, type the following commands. Do not forget to hit the Enter key after every command you type.

  • regsvr32.exe atl.dll
  • regsvr32.exe urlmon.dll
  • regsvr32.exe mshtml.dll
  • regsvr32.exe shdocvw.dll
  • regsvr32.exe browseui.dll
  • regsvr32.exe jscript.dll
  • regsvr32.exe vbscript.dll
  • regsvr32.exe scrrun.dll
  • regsvr32.exe msxml.dll
  • regsvr32.exe msxml3.dll
  • regsvr32.exe msxml6.dll
  • regsvr32.exe actxprxy.dll
  • regsvr32.exe softpub.dll
  • regsvr32.exe wintrust.dll
  • regsvr32.exe dssenh.dll
  • regsvr32.exe rsaenh.dll
  • regsvr32.exe gpkcsp.dll
  • regsvr32.exe sccbase.dll
  • regsvr32.exe slbcsp.dll
  • regsvr32.exe cryptdlg.dll
  • regsvr32.exe oleaut32.dll
  • regsvr32.exe ole32.dll
  • regsvr32.exe shell32.dll
  • regsvr32.exe initpki.dll
  • regsvr32.exe wuapi.dll
  • regsvr32.exe wuaueng.dll
  • regsvr32.exe wuaueng1.dll
  • regsvr32.exe wucltui.dll
  • regsvr32.exe wups.dll
  • regsvr32.exe wups2.dll
  • regsvr32.exe wuweb.dll
  • regsvr32.exe qmgr.dll
  • regsvr32.exe qmgrprxy.dll
  • regsvr32.exe wucltux.dll
  • regsvr32.exe muweb.dll
  • regsvr32.exe wuwebv.dll

4] Delete incorrect Registry values

Open Registry Editor and navigate to the following key:

HKEY_LOCAL_MACHINE\COMPONENTS

Right-click COMPONENTS. Now in the right-pane, delete the following if they exist:

  • PendingXmlIdentifier
  • NextQueueEntryIndex
  • AdvancedInstallersNeedResolving

Restart your computer.

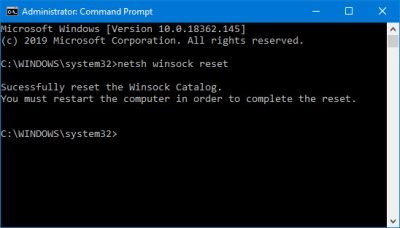

5] Reset Winsock. It is a technical specification that defines how Windows network software should access network services, especially TCP/IP. Windows OS comes with a Dynamic Link Library (DLL) file called winsock.dll which implements the API and coordinates Windows programs and TCP/IP connections. Due to some reason, Windows Sockets popularly referred as Winsock may get corrupted. As such, a user may experience difficulty in establishing a connection to the Internet. It therefore becomes necessary to repair Winsock by resetting it.

To do this, in the command prompt window, type the following command, and then press Enter:

netsh winsock reset

5] Once all is done, restart the BITS service, the Windows Update service, and the Cryptographic service. To do this, switch back to the command prompt and enter the following commands. Again, make sure that you press Enter after you type each command.

  • net start bits
  • net start wuauserv
  • net start appidsvc
  • net start cryptsvc

Finally, make sure that you have installed the latest Windows Update Agent on your computer.

Restart your computer to complete the process.

Source: KB971058. This KB article also gives you the links to download the Windows Update Troubleshooter which basically automated the entire manual process and helps you fix Windows Update problems in a click.
