Install Windows 8.1 on separate partition & Dual Boot it with another OS

We have already seen how to upgrade Windows 8 to Windows 8.1, in our last post. Now we will see how to install Windows 8.1 on a separate partition. I did not want to upgrade my existing working Windows 8 installation to Windows 8.1 Preview, and yet wanted to check out Microsoft’s latest offering. So I decided to install it instead on a separate partition so that I could dual boot Windows 8.1 with Windows 8.

Dual boot Windows 8.1 with another OS

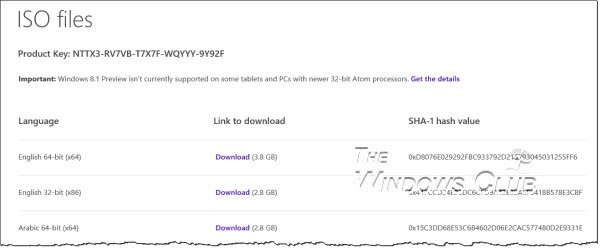

First I created a separate partition using the built-in Disk Management tool. Next I downloaded the Windows 8.1 Preview Client ISO file with the built-in apps.

windows81 iso 400x165 Install Windows 8.1 on separate partition & Dual Boot it with another OS

Next I burned the ISO file to a DVD. Once I had burned the image, and restarted my PC and booted from the DVD. The installation commenced. It was just then that I decided to take pictures on the installation process with my Nokia Lumia 920, so kindly excuse the quality of the images.

You will first see the betta fish for a while after which, it will check if any updates are available. Then you will be asked to input the Product Key, which is NTTX3-RV7VB-T7X7F-WQYYY-9Y92F. Next you will be required to select the Language, Time Format, etc.

Install Windows 8.1 1 400x225 Install Windows 8.1 on separate partition & Dual Boot it with another OSMake your selection and click Next. You will now be presented with a screen that will require you to click on the Install Now button.

Install Windows 8.1 2 400x225 Install Windows 8.1 on separate partition & Dual Boot it with another OS

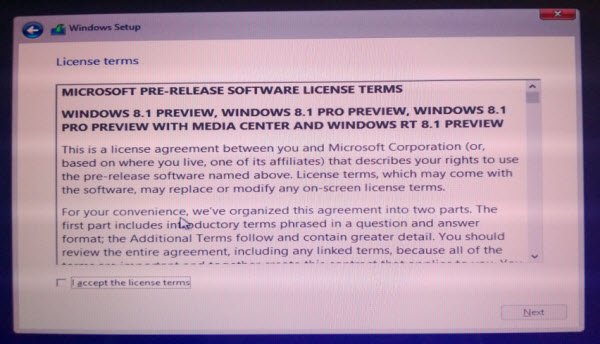

Accept the Microsoft Licensing Terms and click Next.

Install Windows 8.1 3 400x229 Install Windows 8.1 on separate partition & Dual Boot it with another OS

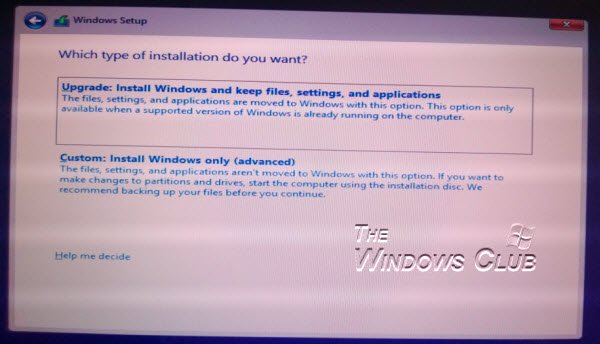

Since I wanted to install Windows 8.1 on a separate partition, I clicked on Custom Install.

Install Windows 8.1 4 400x229 Install Windows 8.1 on separate partition & Dual Boot it with another OS

Install Windows 8.1 on a separate partition

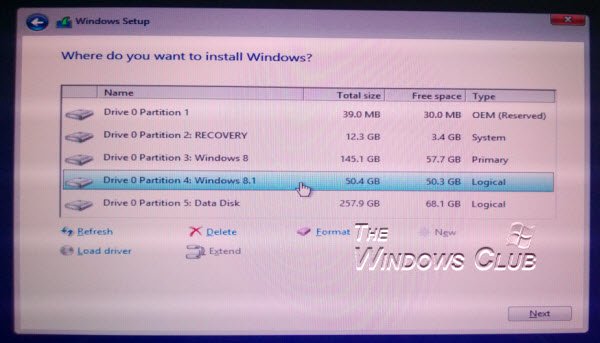

You will be asked to select the partition where you’d like to install Windows 8.1. I selected Drive D, which I had specially created. If you wish to format the partition, you can do so here, from the options given.

Install Windows 8.1 5 400x228 Install Windows 8.1 on separate partition & Dual Boot it with another OS

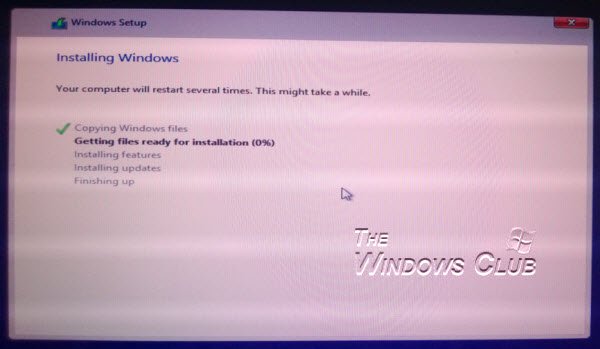

Once done, click on Next. Installation will commence and take a while.

Install Windows 8.1 6 400x232 Install Windows 8.1 on separate partition & Dual Boot it with another OS

Your computer will reboot twice during the Installation process. You will finally see the following screen which will show that Windows 8.1 Preview has been installed.

Install Windows 8.1 7 400x192 Install Windows 8.1 on separate partition & Dual Boot it with another OS

Select this option and boot into Windows 8.1 to get an all new Windows experience!

I will over the next few days, be blogging about the new features in Windows 8.1.

Posted by on , in Category Windows with Tags
Anand Khanse aka HappyAndyK is an end-user Windows enthusiast, a Microsoft MVP in Windows, since 2006, and the Admin of TheWindowsClub.com. Please create a System Restore Point before trying out any software & be careful about any third-party offers while installing freeware. Add me on Google+.
  • Stefano Capanna

    and a guide for remove windows 8.1 on second partition?

  • http://www.thewindowsclub.com Anand Khanse

    Simply format the partition, when logged on to your primary OS, say Windows 8.

  • Ray

    Hi ! I would just like to ask!! How about if the laptop is in UEFI boot? Will the DVD work so that the laptop boots on it? :( Thank you very much!!

  • Dale Cockle

    These comments to HappyAndyK’s fine instructions may be helpful.
    Re “I created a separate partition using the built-in Disk Management tool”.[DISKMGMT.MSC in the Run Box or Search Box]:

    1. I created the new partition by shrinking the partition containing the ‘other’ operating system. It was about 400 GB, so the max shrink was about 200 GB. That gave both the ‘other’ and the 8.1 Preview approx equal space sufficient for both.

    2. I let DISKMGMT format the partition (NTFS) because it’s faster here than letting the Preview installer do it later.

    3. I gave the new partition a Volume Name (Win8.1) to help choose the correct partition later during the Custom installation.

    4. I did NOT assign a Drive Letter. This allows a Drive Letter “C” to be assigned during the installation (pushing other existing drive letter(s) up by one — that’s OK).

    Enjoy, Dale….

  • Techmell

    I am trying to install Windows 8.1 on my Windows 7 pc, in a different partition, but its say something like this “Windows cannot be installed to this hard disk space. This partition contains one or more dynamic volumes that are not supported for installation” what to do now?

  • moo

    Create normal partiton with “primary” option (not logical or dynamic) and install there. There can be maximum of 4 primary partitions on single harddrive.

  • tigertiger

    I created a partition on my win7 home premium 64 bit. When i go to install windows 8, The selected disk has an MBR partition table. On EFI systems, Windows can only be installed to GPT disks. I cannot proceed install.

  • Ravi Kamtam

    Daal Key Ley !

  • Rodrigo Gabriel Lopez

    I created a new partition for windows 8.1. I’m trying to install it in UEFI mode, but when I try to install it, this message appears:
    “The partitions on the disk selected for installation are not in the
    recommended order. For additional information about installing to GPT
    disks go to the Microsoft website (www.microsoft.com) and search for
    GPT.
    Do you want to proceed with installation?”. What should I do?

  • zeel

    i am having problem whili instaling windows 8.1 it shows there is a drive problem

  • TheTechKid9000

    help, after successful install of both OSes, the bootloader is not showing. It only boot to Windows 8 as if it didn’t install Windows 8.1 on my partition.

  • http://captaindbg.com Shyam Sasindran

    Check the install drive and make sure you find Windows folder on both drives. If it’s there go to MSCONFIG and check if you see both OS listed in there.
