Here is a full guide for you to generate a Truth Table in Windows 11/10. A truth table basically displays outputs for all possible combinations of input values to a logic gate or circuit. It either shows True and False values or 0 and 1 values. Now, if you want to calculate truth tables for Boolean expressions, propositional formulae, and logic circuits, you can refer to this post. In this article, we are going to discuss different ways to generate truth tables on your PC.
What is a Truth Table?
A truth table is a chart with rows and columns depicting how a proposition’s truth or falsity changes with its input components. As we mentioned above, it is primarily used to show all possible outcomes from a combination of input values. It is used in logic relating to digital circuits, Boolean algebra, Boolean functions, and propositional calculus.
What is a Truth Table generator?
A truth table generator is basically a tool that can automatically generate a truth table based on the respective logic circuit, boolean expression, proposition, etc. In this article, we are going to list several truth table generators that you can use on Windows 11/10. Keep on reading to find out these tools.
How to generate Truth Table in Windows 11/10
Here are the two ways to generate a truth table in Windows 11/10:
- Use a free software to generate a truth table.
- Create a truth table using a free web service.
Let us discuss the above methods in detail!
1] Use a free software to generate a Truth Table
There are multiple free software that let you generate a truth table, Basically, some logic simulation software enable you to create a truth table from boolean expressions, logical statements, circuits, or propositional formulae. Here are some of the better truth table generators that you can use on Windows 11/10 PC:
- LogicCircuit
- Logisim
- SimpleSolver
- Logicheck
- LogicCalculus
1] LogicCircuit
LogicCircuit is a dedicated logic simulation software that lets you generate truth tables in Windows 11/10. Using it, you can create a truth table from a logic circuit. Let us have a look at the steps to generate a truth table in LogicCircuit.
How to generate a truth table from logic circuits in Windows 11/10:
Here are the main steps for creating a truth table from a logical circuit:

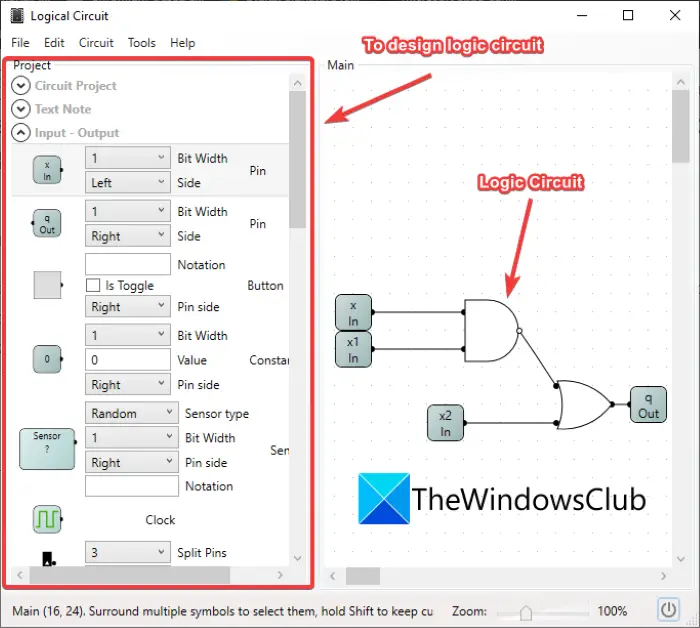

Firstly, download and install LogicCircuit on your PC. Launch it and then you need to create a logical circuit for which you want to calculate the truth table. You can design a logical circuit with multiple components including input, output, logic gates, and memory. Simply drag a desired component from the Project panel and drop it onto the main design window.

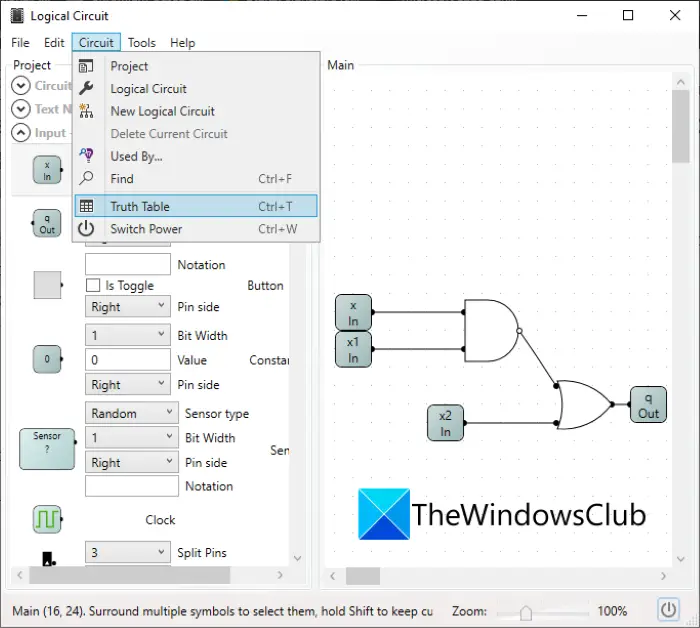

When you are done creating a circuit diagram, go to the Circuit menu and click on the Truth Table option. Alternately, you can also press Ctrl + T hotkey to generate the truth table.

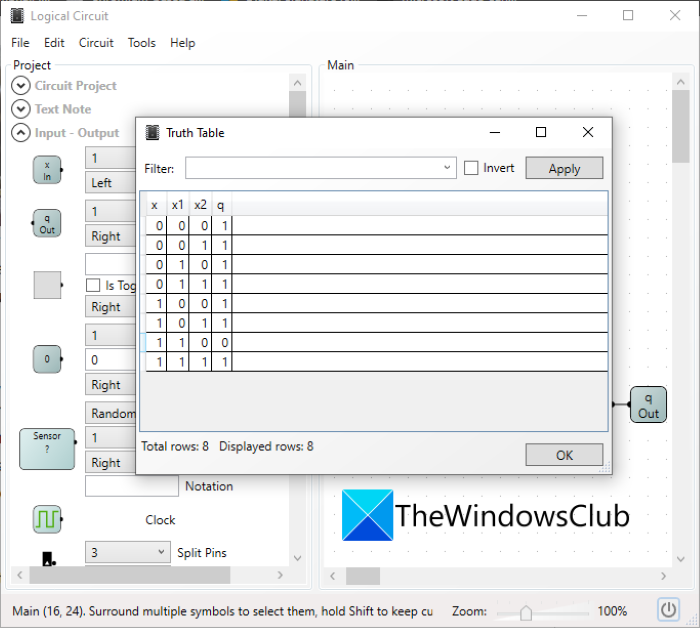

Your logical circuit will be processed for a few seconds and then a respective truth table will be generated. You will see output values based on all possible values of input pins.
You can also apply filters to view a specific set of input and output values, like x=0, x1=1, etc.
It is an easy-to-use truth table calculator that you can use to design and export logical circuits. You can download it from logiccircuit.org.
2] Logisim
Logisim is a portable truth table generator for Windows 11/10. It is basically used to design and simulate logic circuits. Using it, you can create a logical circuit and then generate a truth table for it. Let us discuss the whole process in detail.

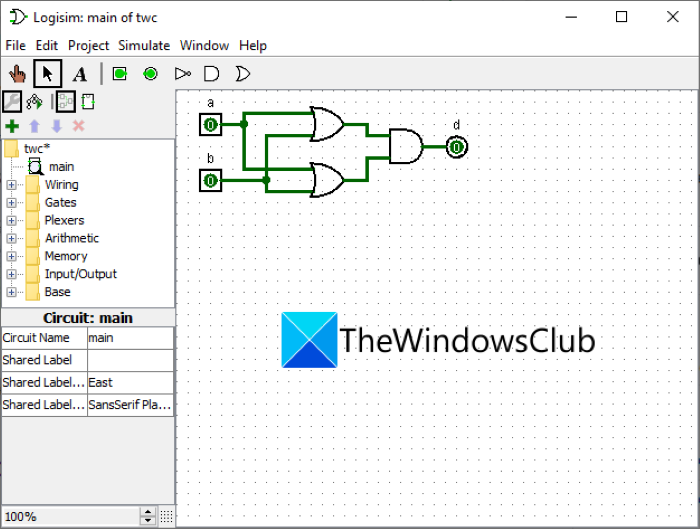

Download this portable application and then double-click on its application file to launch its main interface. Now, you can simply design a logical circuit for which you want to create a truth table. Use gates, plexers, arithmetic, input, output, wiring, and other circuit components to design the circuit.

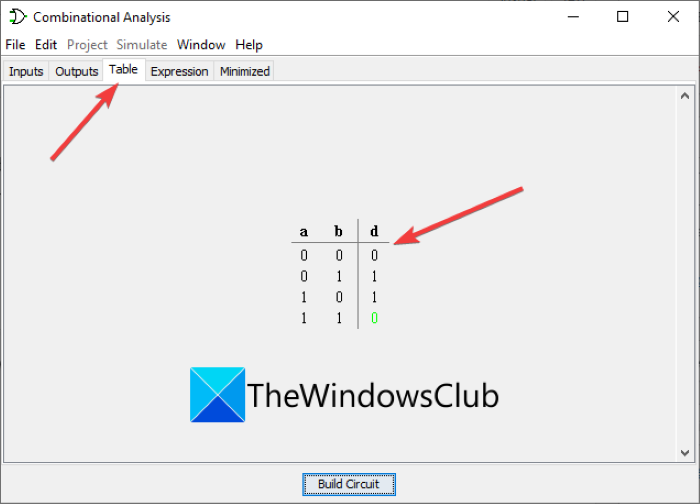

When your logical circuit is completed, you can calculate the respective truth table. Just go to the Project menu and click on the Analyze Circuit option. It will then open up a Combination Analysis dialog window. Here, you will see a Table tab where you can basically view the truth table for the created logic circuit.
Now, if you want to generate a truth table using a boolean expression, you can do that too. It even lets you automatically generate a logical circuit design using a boolean expression.

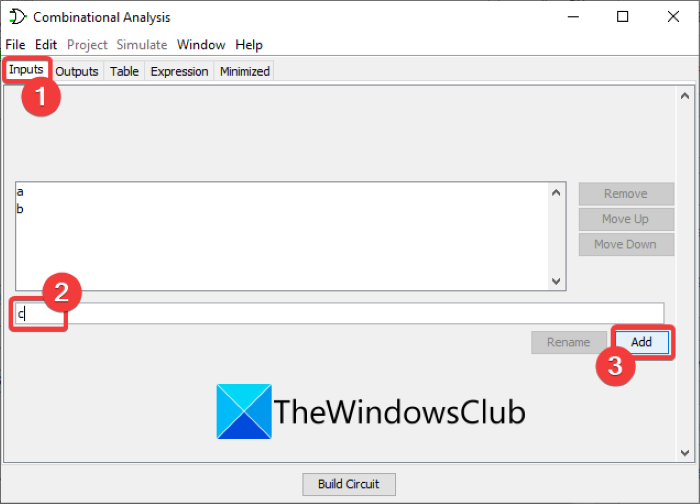

To do that, open the Combination Analysis window as we did in earlier steps and then go to the Inputs tab. Here, enter the inputs you want to use in the truth table and then press the Add button. Similarly, add the output labels in the Outputs tab.

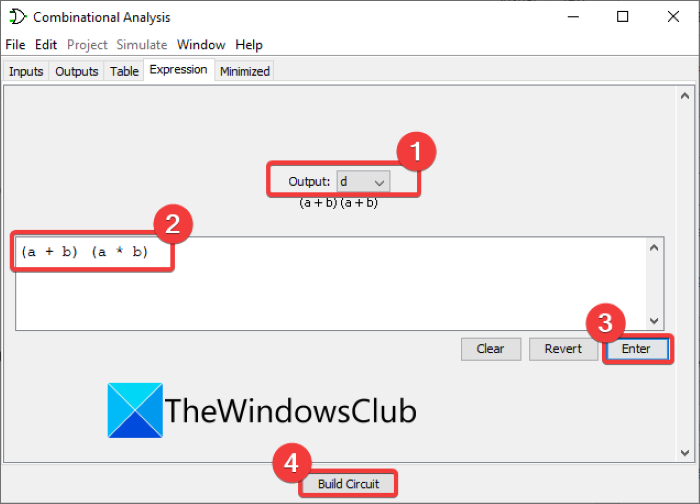

After defining inputs and outputs, go to the Expression tab and select the output for creating a truth table. Type your boolean expression in the box and then click on the Enter button. Then, press the Build Circuit button.
This will create a logical circuit as well as a truth table for the entered Boolean expression.
It is a good logic gate simulator that allows you to calculate truth tables from logic circuits and Boolean expressions.
3] SimpleSolver
SimpleSolver is a free truth table calculator software for Windows 11/10. It comes up with some tools including Boolean minimizer, logic simulation, truth table generator, etc. In it, you can enter boolean expressions and it will generate the respective truth table. Let us check out a sorted procedure now.

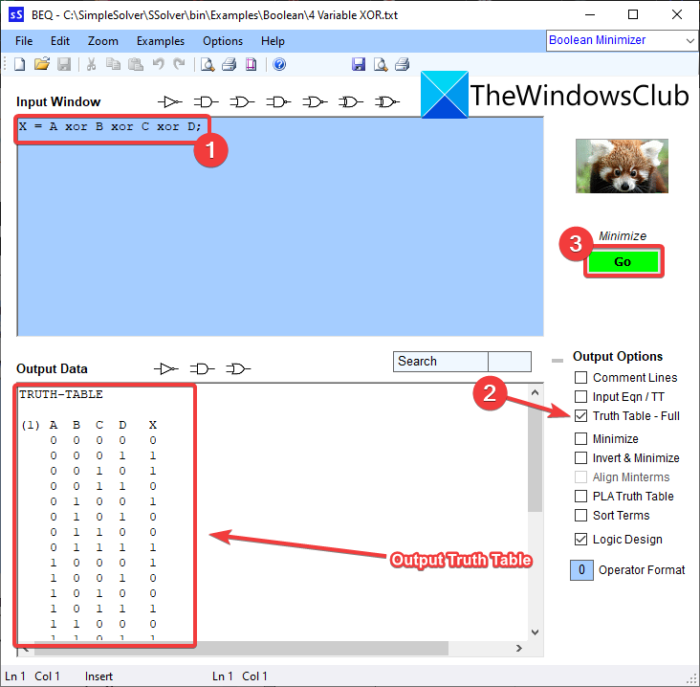

First of all, download and install SimpleSolver on your PC. Then, launch this software and in Input Window, enter a boolean expression, such as X = A xor B xor C xor D;. The boolean expression must end with a semi-colon (;). You can enter more than one boolean expression in new lines and it will generate truth tables for all of them.
Now, from the right panel, make sure the Truth Table – Full option is enabled. You can also enable the other information that you want to display, like PLA Truth Table, Logic Design, Minimize (boolean expression), and more.
Finally, click the GO button and it will display the truth tables in the Output Data window.
You can save the output as a TXT file from the File > Save as option.
It also comes with some examples of circuit designs that you can explore from the Examples menu. You can get it from simplesolverlogic.com.
4] Logicheck
Logicheck is a dedicated, free, and portable truth table generator for Windows 11/10. It is a simple tool for quickly generating a truth table from a Boolean expression. Let’s see how.
Download and launch this portable app. You will see an Expression field on the main screen. Just enter your boolean expression in this field. You can use logical operators like NOT, OR, AND, XOR, etc., to complete your Boolean expression.

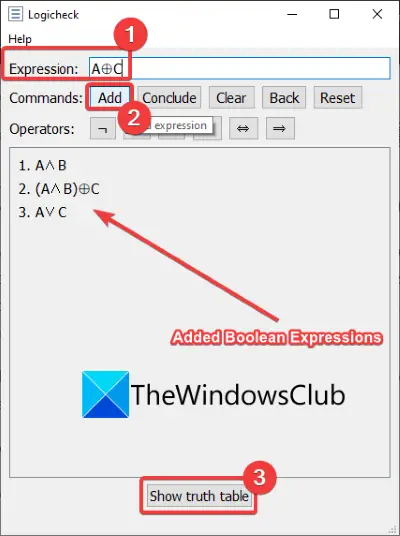

After typing the expression, click on the ADD command to add it to the list. Similarly, you can add more Boolean expressions to the list. It also shows syntax errors in your expression (if any) at the bottom of its interface. You can correct the error later.
When done adding boolean expressions, click on the Show Truth Table option.
It will then display a truth table for all entered Boolean expressions.
You can download this handy truth table generator from sourceforge.net.
5] LogicCalculus
LogicCalculus is free and open-source truth table generator software for Windows 11/10. It evaluates boolean expressions and then generates a corresponding truth table. It is one of the easiest tools on this list.

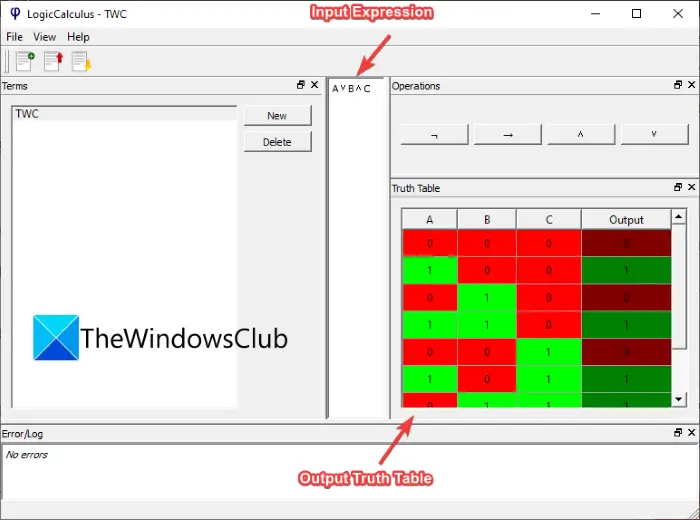

You can add terms using the New option and then add the Boolean expression in the middle section. It provides basic logic operators to use in your expression. As you enter the expression, it generates the truth table for the same in the dedicated section in real-time.
If there are errors in your input expression, it shows the same in the bottom panel.
2] Create a Truth Table using a free web service
You can also use an online web service to generate a truth table. Here are some better truth table generator services that you can use:
- mrieppel.net
- truthtablemaker.com
- loighic.net
- stanford.edu
1] mrieppel.net

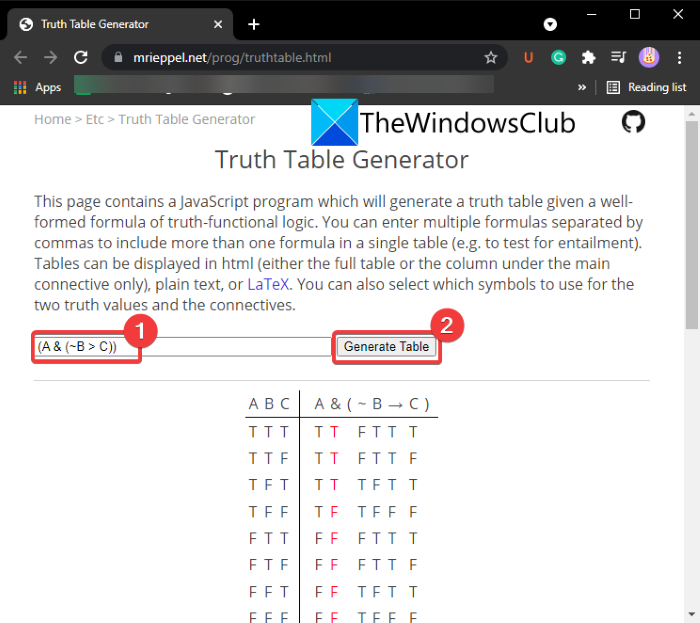

mrieppel.net is a simple online service to generate a truth table. You can enter the Boolean expression in the box and then click on the Generate Table button to calculate the corresponding truth table.
You can select the format truth values in the output truth table such as T/F, 0/1, etc. It also lets you set truth table type to Full Table, Main Connective Only, Text Table, or LaTex Table to generate a specific kind of truth table. Plus, you can also select the connectives to enter the expression. It provides some examples of how the input expression must be.
Read: How use the OR function Excel to determine if a condition is True.
2] truthtablemaker.com
truthtablemaker.com is a dedicated online truth table generator service. Just go to its website in your web browser and enter a logic expression. Then, click the Get Truth Table button to generate the respective truth table.
It provides a quick guide on its main interface, showing how to use this tool and the format and symbols required for the expression.
For a propositional truth table, you can click on its Advanced Truth Table button. It will then ask you to enter a propositional logic formula in the box. Type the formula and it will display the respective truth table.
3] loighic.net

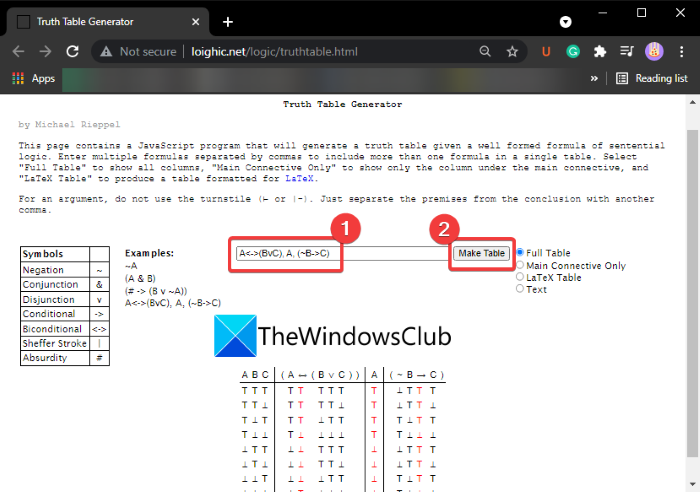

loighic.net provides you an online truth table generator tool. You can generate Full Truth Table, Main Connective Only, LaTeX Table, and Text truth table. Simply enter the boolean expression and click the Make Table option. It will show the truth table below.
4] stanford.edu

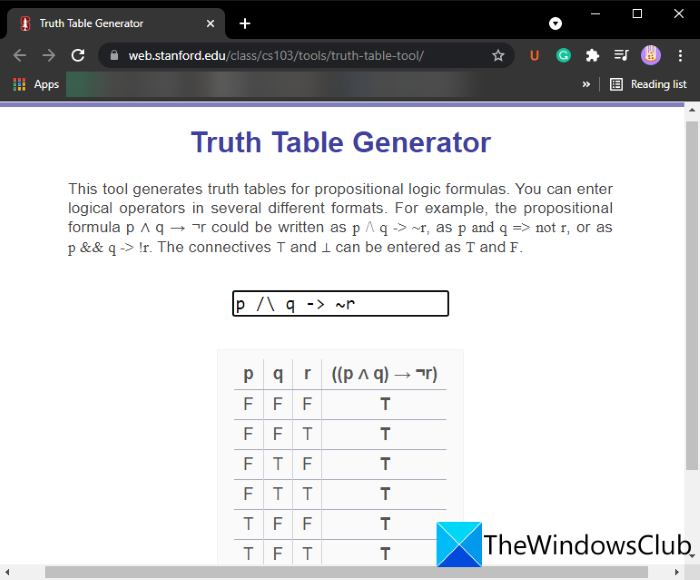

Stanford.edu is a simple tool to calculate truth tables for boolean and propositional logic formulas. You can enter the formula and it will automatically generate the respective truth table in the web browser.
How do you make a boolean Truth Table?
You can make a Boolean truth table by entering the respective Boolean expression with the correct syntax. Almost all of the above-discussed software and online tools allow you to create a truth table from a Boolean expression. From the list, you use software like SimpleSolver, Logicheck, or LogicCalculus as we explained above. Alternately, you can use any of the discussed web services to generate a Boolean truth table.
How do you create a Truth Table with two variables?
To create a truth table with two variables, you can enter a Boolean expression or design a logic circuit with two inputs. For example, A + B = C. Here, A and B are two input variables, + sign denotes OR gate, and C is the output that is generated with the combinations of A and B values.
Hope this post helps you generate a truth table for a Boolean expression or a logical circuit in Windows 11/10.
