In this post, we will talk about how to design a Speaker Enclosures on Windows 11/10 PC. A Speaker Enclosures is a box or cabinet in which speaker drivers and other hardware are mounted. It is an essential element in home theater and loudspeaker systems, that handles vibration from speaker drivers. Now, if you want to design and calculate various parameters for your speaker enclosure, how to do that? In this article, we are going to talk about that.

To design and calculate speaker enclosures, we are going to use free web services and software for Windows 11.10. There are some free services that allow you to design and analyze speaker enclosures. You can simply enter some input specifications and these tools will let you view speaker enclosure designs and calculations. These show various graphs like transfer function, SPL, impedance, cone displacement, etc., that you can analyze before creating your speaker enclosures.

What are the two most common design types for Speaker Enclosures? What are their features?

The two most common types of speaker enclosures include Sealed and Ported. The sealed enclosure is an airtight case and the air pressure keeps on varying in the speaker as the driver moves back and forth. In a ported enclosure, there is a hole in the front to equalize pressure inside and outside the speaker. To design these two types and more types of speaker enclosures, you can use the services listed in this post. Let us check out what are these tools.

How to design Speaker Enclosure in Windows 11/10

Here are the online tools and freeware that you can use to design Speaker Boxes and Enclosures in Windows 11/10:

speakerboxlite.com
subbox.pro
diyaudioandvideo.com
WinISD
Boxnotes

Let us discuss the above tools in detail now!

1] speakerboxlite.com

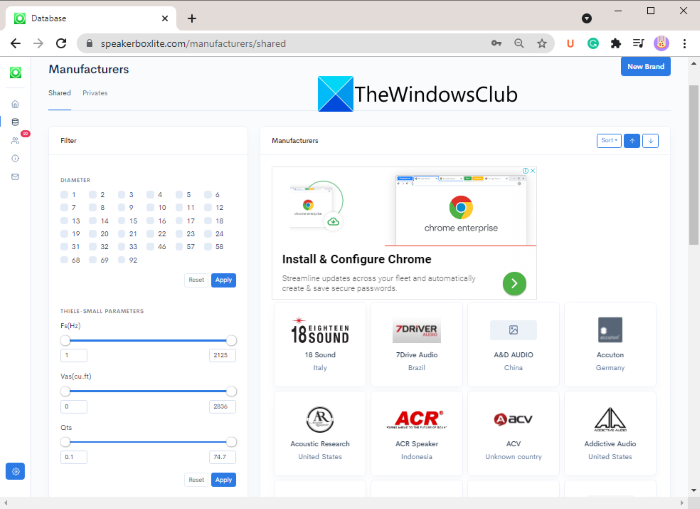

speakerboxlite.com is a dedicated web service to design a speaker box and enclosure on Windows 11/10. It is a great service to design speaker enclosures and boxes. You can also browse the driver database on this website and select a brand from over 300, and use a branded speaker design to customize your speaker design.

Here are the main steps to create a speaker box using this free online tool:

Open a web browser and go to its website.
Tap on the Design Box button.
Set up speaker options, enclosure type, box parameters, etc.
Configure port parameters.
Enter velocity of sound and density of air.
Press the Draw button to create a speaker enclosure or box.
Analyze speaker parts and various graphs.

Let us discuss the above steps in detail now!

Firstly, open your web browser and then navigate to the speakerboxlite.com website. Then, click on the Design Box button from the home screen.

Now, you can go to the Speaker tab and select speaker model, computation model, speaker parameters, number of speakers, and speaker configurations.

Then, move to the Enclosure tab and customize enclosure type, box parameters, and volume generation. Also, from the Box tab, you can enter and set up values and options like displacement, cutout diameter, mounting depth, box shape, material thickness, material volume, and more. Plus, you can also enter environmental properties including the velocity of sound and density of air.

You can now press the Draw button to visualize the 3D design, 2D drawing, and various graphs.

It lets you visualize different speaker parts as well as analyze graphs like Transfer Function, SPL, Maximum Power, Cone Displacement, Impedance, and more graphs.

You can also find a Link option on it using which you can generate a speaker project link and view all the calculations related to the designed speaker.

If you want to use this web service, head over to speakerboxlite.com to design a speaker enclosure or box.

Read: How to change Surface Omnisonic Speaker settings

2] subbox.pro

You can also try subbox.pro which is a free online service. It is a simple and good website using which you can design speaker boxes. Just enter the box, subwoofer, and port parameters and you will be able to view the speaker design in 2D and 3D plans. Also, you can check out different speaker calculations. Here are the steps to use this online speaker design tool:

Launch a web browser.
Open this website.
Type the required box and other parameters.
Click on the Calculate button.
View and analyze speaker design and calculations.

Firstly, launch a web browser and open subbox.pro website. Now, from the right-side panel, set up different box parameters including box type (ported box, sealed box, quarter-wave, etc.), width, height, depth, net internal volume, material thickness, front panel, etc.

Furthermore, you can configure subwoofer and port properties such as quantity, size, woofer displacement, mounting depth, brand, port type, tuning frequency, pipe inner diameter, pipe wall thickness, port area, and more.

Finally, click on the Calculate button to display speaker design based on your input configurations.

In the 3D tab, you can visualize the full speaker design box. You can customize the view to wireframe and customize the texture and background of the speaker. It also lets you rotate the speaker design to view it from a different angle.

You can click on the Take Apart button and view isolated parts of the speaker design.

You can also visualize a plan view of speaker boxes in the Plan tab.

Scroll down on the page and you will be able to see different calculations of the designed speaker box.

These speaker calculations include box external dimensions, pipe length, port area, net internal volume, and more.

It is a very easy-to-use and basic tool to design speaker enclosure and does its work quite well.

See: Bluetooth speaker paired, but no Sound or Music in Windows

3] diyaudioandvideo.com

diyaudioandvideo.com is another free online tool to design speaker enclosures and calculate enclosure designs. On this website, you can find different speaker-related tools such as speaker box volume calculator, 2-way crossover designer, parallel notch filter, sealer or ported calculator, air-core indicator designer, etc. One of these tools includes a Speaker Box Enclosure Designer / Calculator. Using it, you can design speaker enclosures.

Simply go to its website and make sure you are on its Speaker Box Enclosure Designer / Calculator page. Now, just enter the input parameters that include Equivalent Volume, Free Air Resonance, Total Q, Effective Cone Diameter, Resonance Frequency, etc.

Next, tap on the Compute Sealed Box, Compute Ported Box, or Compute Ported Butterworth B4 Box, whatever you want to calculate.

It will then calculate and display the speaker enclosure design and calculation in a new tab.

You can view Speaker Box Internal Volume, 3dB Cutoff Frequency, and Enclosure Resonant Frequency of the designed speaker enclosure. You can directly print the results by clicking on the Print button.

All in all, it is a good service that you can use for basic speaker enclosure design and calculations.

Read: Enhancements tab missing in Speakers Properties on Windows.

4] WinISD

If you want to use free software, then try WinISD. It is a dedicated freeware specially designed to let you create speaker designs. You can design Closed, Vented and Bandpass types of speaker boxes with this freeware.

Download and install WinISD and then open the GUI of this free software. Then, click on the Create a new project button from its main toolbar and then select a driver for your project.

You can also set up the number of drivers, driver placement, type of design, and alignment.

Now, you can also edit various speaker parameters including box volume, tuning frequency, vents number, shape, vent diameter, end correction, listening place, signal source, temperature, relative humidity, air pressure, etc.

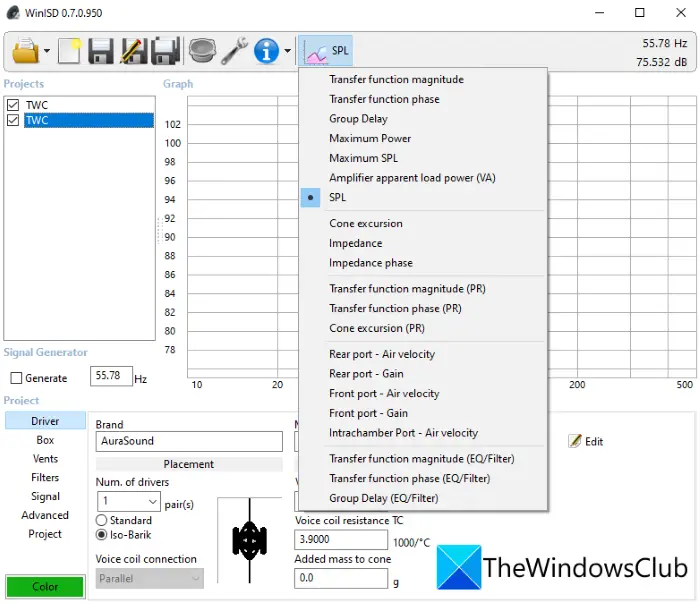

Based on your input specifications, you can various analysis graphs including transfer function magnitude, transfer function phase, group delay, maximum power, SPL, amplifier apparent load power, impedance, impedance phase, rear port (air velocity), intrachamber port (air velocity), etc.

To use this freeware, you can download it from here.

See: How to set up Preferred Speaker & Microphone for different Apps

5] Boxnotes

Boxnotes is a free and portable software to design speaker enclosures. You can find out accurate speaker box dimensions and compute panel details and cutting lists.

Download Boxnotes and then launch it on your PC. Now, you can enter the box dimensions, port parameters, driver locations, and more. You can also select port flanges. It shows the real-time calculation for output like port resonance, driver to top wall resonance, box top to bottom resonance, etc.

You can click the Panel Details and Cutting Lists button from the top toolbar and it will show you various calculations including top panel, front outer panel, left side panel, bottom panel, shelf brace, rear panel, etc. You can print the output results.

From the Project menu, click on the Generate Report option and you will be able to a speaker enclosure report including cutting list, resonance, port details, driver details, etc.

The report is generated in a TXT file.

Read: How to install Dolby Audio on Windows 11/10

How do you calculate speaker box?

You can calculate a speaker box using the above-discussed tools. These tools show you accurate calculations to design speaker boxes based on the input specifications. I personally liked subbox.pro and speakerboxlite.com that let you calculate a speaker box without much hassle.

That’s it!

Now read: How to test Surround Sound Speakers on Windows PC.
