Set up Wireless Router Network

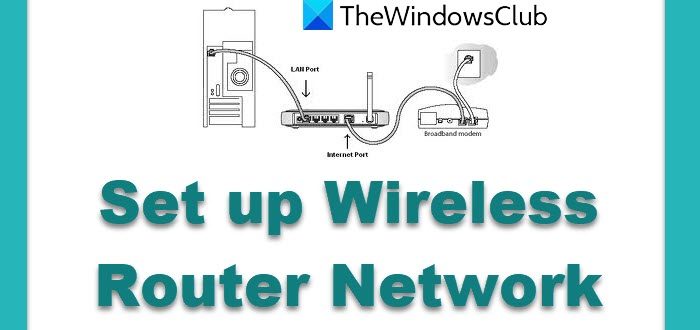

Connect to Modem
- Power off your modem. Next connect one end of the Ethernet Cable to the ‘input’, marked at the backside of the router and other end to the modem. Now Power Modem back on.
Generally it is a good rule to wait at least a minute before continuing to the next step.
Connect to Computer
- Connect one end of a second Ethernet Cable to one of the available ports on the Router. Most modern Routers include four ports.
Power your Router
- Plug your Router to a power source and wait till until your Router’s LED signals that it is connected to the internet. Generally Routers have a green LED indicator that turns solid when connected.
Install Software and Drivers
- If your Router included a disk to install Drivers, insert disk and continue following the disks instructions to install Drivers and set up your Network.
- If your Router does not include a disk continue to next steps.
Configure your Network
- Take note of the Router’s IP address that is selected automatically (default) and mentioned in the user’s guide. Most Routers by default use, http://192.168.1.1 as the default IP address
- Open your default web browser and type in the router’s address in the provided empty search field.
- Insert a valid Username and Password. If you have not set one up and it requires one, the default for most brands of Routers is, Username: Admin, Password: Password.
- You can also get to your Routers (Homepage) by going to Start Menu\Control Panel\Network and Sharing Center. Click the center icon at top, which usually has the house as an icon if you saved your Network as a Home Network. On the next page under Network Infrastructure you should see your Router listed. Just Right-Click your Router Icon and you should have a menu option to view Homepage.
- Choose your Basic Settings such as Router Name, and IP Addressing
Wireless Security Settings
- Locate Wireless Security or Wireless Settings. Choose a name(SSID) for your Network that you can easily identify and whether you wish to broadcast your Wireless Signal.
- Select channel to broadcast on, by default a Router usually has this set to Auto which is fine for most users.
- Select Wireless Mode. This is your speed for your wireless. Example: 54Mbps, 145Mbps and 300Mbps.
For your Wireless Security settings, most modern Routers include the following types of security:
- None – No security. Not recommended if you are in an area where someone who lives next door to you could use your Wireless Connection to connect to the Internet.
- WEP – Older security encryption used for Wireless Networks with better options now available. This option does not give a password but a unique key that users enter to connect.
- WPA-PSK[TKIP] – Better security than WEP and sometimes users still use this if they have issues with devices connecting. Still a great Security Option. There is a 54Mbps limit on this connection using Legacy G.
- WPA2-PSK[AES] – Newer security using N support and if you have no issues with devices connecting this is the recommended Security Option as it gives you the best security.
- WPA-PSK[TKIP]+WPA2-PSK[AES] – If you have issues with devices connecting you can use this setting as it gives you a combination of WPA and WPA2.
Another thing to note outside of setting up your Router is setting up Sharing for Computers and Devices connected to your Network. Windows 7 has come along way in making this easier for users and most users can do this by following the walk-through in Windows.
Authored by: Hemant Saxena with inputs from Lee Whittington.
