Secure portable storage devices using BitLocker To Go in Windows 10

We have seen earlier how to encrypt USB flash drives with BitLocker To Go in Windows 7. In this post, we will see how to enable & use BitLocker To Go in Windows 10/8 to secure portable storage devices. Portable storage devices can be Flash drives, SD cards, external hard disk drives.

Secure portable storage devices

As you know, BitLocker encrypts the hard drives on your computer to provide enhanced protection against data theft or exposure on computers and removable drives that are lost or stolen and more secure data deletion when BitLocker-protected computers are decommissioned as it is much more difficult to recover deleted data from an encrypted drive than from a non-encrypted drive.

BitLocker To Go in Windows 10

BitLocker To Go in Windows 10

BitLocker Drive Encryption on removable data drives is called BitLocker To Go. BitLocker is available in Windows 10/8 Pro, Windows 10/8 Enterprise and all editions of Windows Server 2016/2012.

We all use USB Flash drives or thumb drives. We carry them around since they are very small in size and convenient – and yet have a large storage capacity. But the chances are that you may misplace it, or someone may even steal it. So whatever is on that thumb drive can be viewed by anyone.

We will see how to secure our portable storage encrypting it using BitLocker To Go, so that no one can read them, unless one has a key to unlock it. We will see it how to do it step by step.

Encrypt Flash Drive using BitLocker To Go

Connect your USB flash drive to be protected to your Windows system. Launch Control Panel by typing Control Panel in the Start Screen and look for BitLocker Drive Encryption icon and open it. If you can’t locate in Control Panel, just search for it in Control Panel search box.

Secure portable storage devices

You’ll get a screen like this, click on ‘Turn on BitLocker’ for your Removable data Drive.

BitLockerToGo02

If you cannot see ‘Turn on BitLocker’ link, click the arrow which is on the right of the Removable Drive name.

BitLockerToGo03

You’ll get to see this screen momentarily, initializing the Drive

BitLockerToGo04

You will next be asked how you want to unlock the drive. Like many people who don’t have a smart card based security, we will tick the checkbox for ‘Use a password to unlock the drive’. Type and retype a strong password and click Next.

BitLockerToGo05

You’ll next be asked – How do you want to back up your Recovery Key. This step is very important. If you forget your password or lose your Smart card, then you can use this backed-up recovery key to unlock your drive. So you can print it out and keep it safely or save it to a file or your Microsoft Account, in Windows 10/8.

BitLockerToGo06

Once it’s done, a message that the Recovery Key has been saved will be shown.Click on Next.

BitLockerToGo07

You will now be offered the option to encrypt the entire drive or only the used space on which data has been written to be encrypted. Actually, this is new in Windows 8/10. Earlier in Windows 7, BitLocker requires that all data and free space on the drive to be encrypted. And this entire process of encryption could take very long time on larger volumes.

When you choose Encrypt used disk space only option, only the portion of the drive that has data will be encrypted. The free disk space will not be encrypted. Thus, encryption completes much faster on empty or partly empty drives than previous implementations of BitLocker.

BitLocker encrypts new data automatically as you add it. Also if you are enabling BitLocker on a drive (or PC) that’s already in use, consider encrypting the entire drive. This ensures all data is protected, even those data that you had deleted earlier but that might still contain retrievable info. So choose accordingly.

BitLockerToGo08

Once you click Next, it’ll ask you to confirm – Are you ready to encrypt this drive. Click on Start Encrypting.

BitLockerToGo09

The Encrypting process will start. Depending on the size of the drive or how much data on it and your Computer speed, it’ll complete the encryption process.

BitLockerToGo10

Also, note various options now available in the background for the drive. Once encryption is complete, you’ll get the message.

BitLockerToGo11

Unlock Encrypted Drive using BitLocker To Go

Whenever you plug this encrypted Flash drive into the PC, you’ll get a message ‘This drive is BitLocker-protected’. It pops up at the top right corner for some time and then fades away

BitLockerToGo12

Before fading, if you click on that message, you’ll get the window to enter the password to Unlock the drive. Enter the password and click on Unlock.

BitLockerToGo13

If you are using the drive on the same PC, you have an option to ‘Automatically unlock on this PC’ too, when you click on More Options. However you’ll have to type the password when used on other PCs.

BitLockerToGo14

Anyway if you don’t click on the message, before it fades away, you can unlock it using File Explorer, where it gets listed as a Removable disk. Just right-click on the icon to get the ‘Unlock Drive…’ option.

BitLockerToGo15

Also note the icon before unlocking and once you unlock it, its icon changes.

BitLockerToGo16

This is how you encrypt and secure your portable devices and drives using BitLocker To Go in Windows 10. If you are a Windows 10/8 user and often keep important data, documents on a portable drive, don’t forget to secure it this way.

Turn off BitLocker To Go

If we want to use these drives as normal drives again, can we turn off BitLocker encryption? This is how you can do it.

Attach your Flash drive or any other portable storage device to your PC, unlock the drive by entering the password as suggested in the article. Once unlocked, from the File Explorer, right click on the Unlocked drive icon and click on Manage BitLocker.

TurnoffBitLocker01

The BitLocker Drive Encryption in Control Panel will open up.

TurnoffBitLocker02

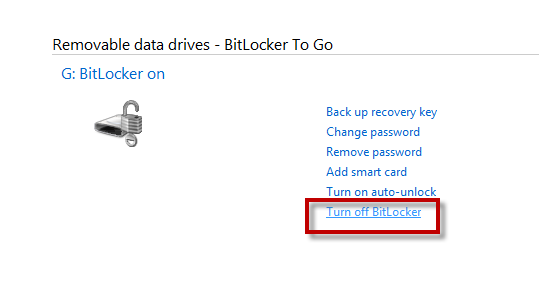

Click on Turn off BitLocker option for your drive.

TurnoffBitLocker02a

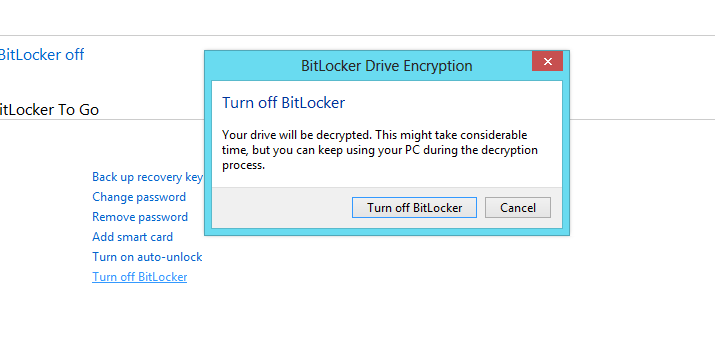

It’ll open a window, click on Turn off BitLocker. As your drive gets decrypted, it may take considerable time, but one can keep using your PC during the process.

TurnoffBitLocker03

Once done, your flash drives or other portable drives can now again be used as normal drives.
